Wireshark

Wireshark is a powerful, open-source network protocol analyzer used for network troubleshooting, analysis, and software and communications protocol development. It allows you to capture and interactively browse the traffic running on a computer network.

Main usages

  1. Network Troubleshooting: Diagnose network issues and performance problems.
  2. Security Analysis: Detect network intrusions and analyze suspicious traffic.
  3. Protocol Analysis: Study and understand network protocols in detail.
  4. Application Debugging: Debug network-related issues in applications.
  5. Educational Tool: Learn about network protocols and communication.

How Wireshark works

Wireshark captures packets from a network interface and analyzes them. It uses a library called libpcap (on Unix-like systems) or WinPcap/Npcap (on Windows) to capture packets. The main components of Wireshark are:

  1. Capture Engine: Captures live network traffic.
  2. Dissectors: Interpret and analyze various network protocols.
  3. User Interface: Displays captured data in a human-readable format.

Key features

  • Live capture and offline analysis
  • Deep inspection of hundreds of protocols
  • Multi-platform: Runs on Windows, Linux, macOS, and other Unix-like systems
  • Powerful display filters
  • Rich VoIP analysis
  • Decryption support for many protocols

Command line examples

While Wireshark is primarily a GUI application, it also offers command-line tools like tshark for terminal-based analysis.

Start Wireshark from command line

wireshark

Capture packets on a specific interface

wireshark -i eth0 -k

This command starts Wireshark, captures on the eth0 interface (-i eth0), and immediately starts capturing (-k).

Capture with a filter

wireshark -i eth0 -f "port 80"

This captures only HTTP traffic on eth0.

Read from a capture file

wireshark -r capture.pcap

This opens a previously saved capture file.

Using display filters

Display filters in Wireshark allow you to focus on specific types of traffic. Here are some common filters:

Filter Purpose Syntax
Show only HTTP traffic http
Show traffic to/from a specific IP ip.addr == 192.168.1.1
Show TCP traffic on port 80 tcp.port == 80
Show all traffic except ARP and DNS !(arp or dns)

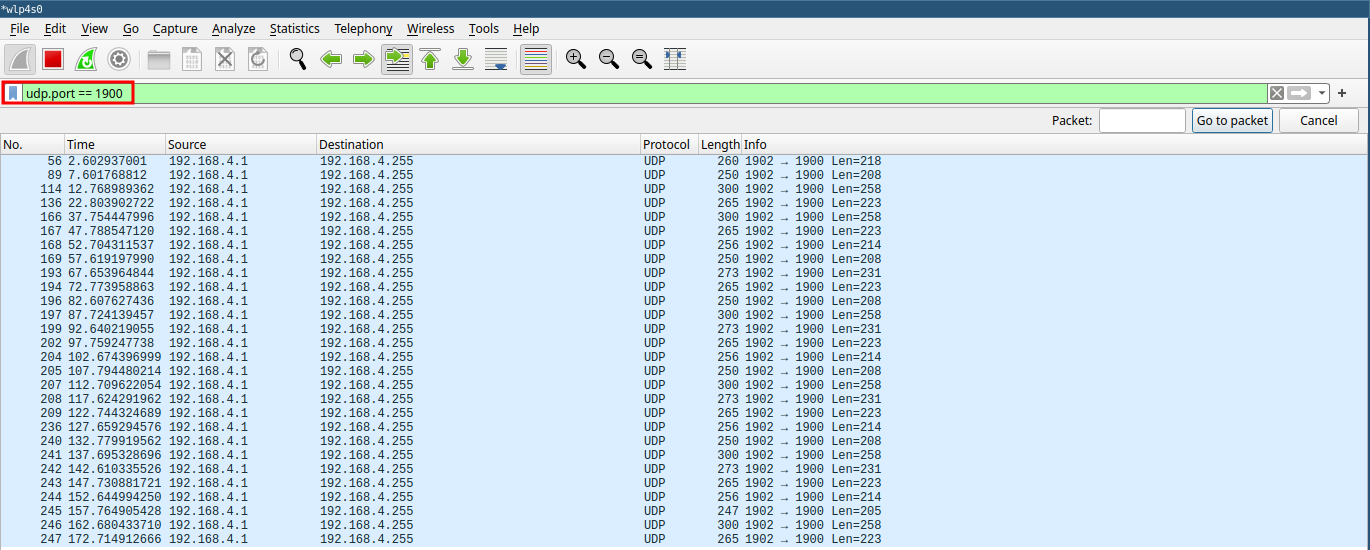

Display filters

Analyzing packets

To analyze packets in Wireshark:

  1. Start a capture or open a capture file.
  2. Apply relevant display filters.
  3. Click on a packet in the packet list pane to view its details.
  4. Expand the protocol layers in the packet details pane to examine specific fields.

Packet details

Tips for effective use

  1. Use coloring rules to highlight important packets.
  2. Save frequently used filters as filter buttons.
  3. Use the "Follow TCP Stream" feature to reconstruct conversations.
  4. Leverage Wireshark's statistical tools for traffic analysis.
